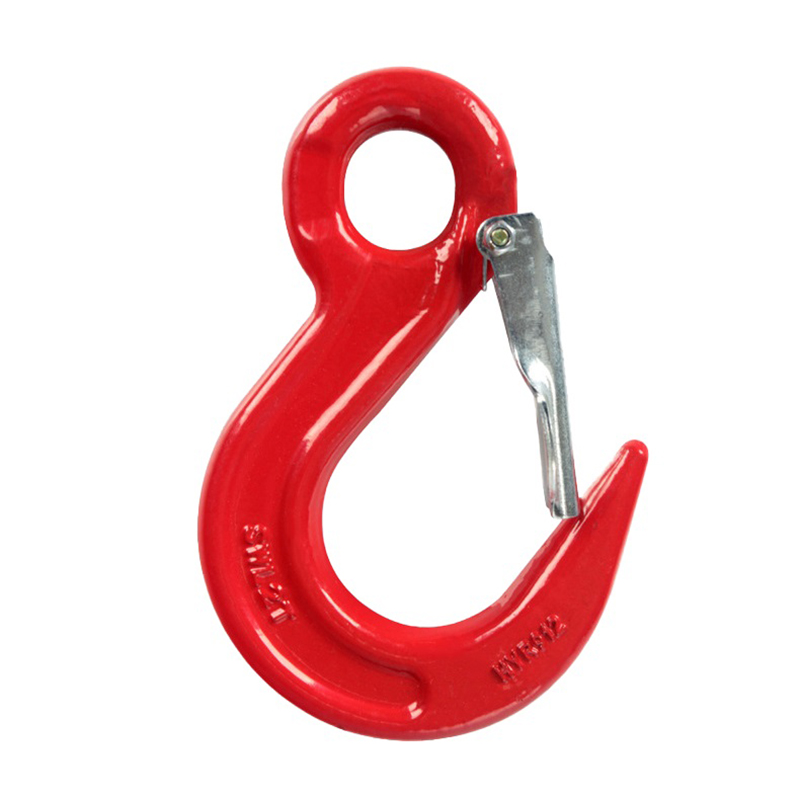

High-Strength Alloy Steel EN 1677-1 Lifting Hooks for Industrial Crane Safety Operations

◆◆ Product Advantage

Lifting Hooks: High-Strength, High-Safety Industrial-Grade Connection Solutions

• Forged Alloy Steel Construction & Ultra-High Tensile Strength

Crafted from ASTM A489 alloy steel via forging , treated with quenching and tempering processes to achieve a tensile strength of 1,000 MPa (30% higher than standard steel) and yield strength ≥635 MPa. Passes magnetic particle inspection (MT) and ultrasonic testing (UT) to ensure zero internal cracks. Suitable for loads from 1t to 100t (e.g., port cranes, steel mill lifting), with a service life exceeding 10 years.

Keywords: Alloy steel lifting hook, high-strength forged hook, ASTM A489 hook

• 5:1 Safety Factor & Global Certification Compliance

Features a 5:1 safety factor (static load) and withstands 25% overload without deformation (tested to EN 1677-1). Certified to CE, ASME B30.10, and G80 standards, with third-party load test reports (e.g., 100-ton hook breaking load ≥500 tons). Equipped with mechanical safety latchesthat prevent disengagement with 99.9% effectiveness (e.g., swivel hook design resists tangling).

Keywords : High-safety-factor lifting hook, CE-certified lifting hook, anti-slip safety latch hook

• Corrosion-Resistant Surface Treatment & Wide Temperature Adaptability

Hot-dip galvanized coating (80μm) or Dacromet coating withstands 1,000-hour salt spray testing (ISO 9227), ideal for offshore platforms and chemical plants. Operating temperature range: -40°C to +200°C(high-temperature models up to +400°C), with low-temperature impact toughness ≥27J (-40°C tested).

Keywords: Corrosion-resistant lifting hook, Dacromet-coated hook, wide-temperature-range industrial hook

• Modular Design & Multi-Scenario Adaptability

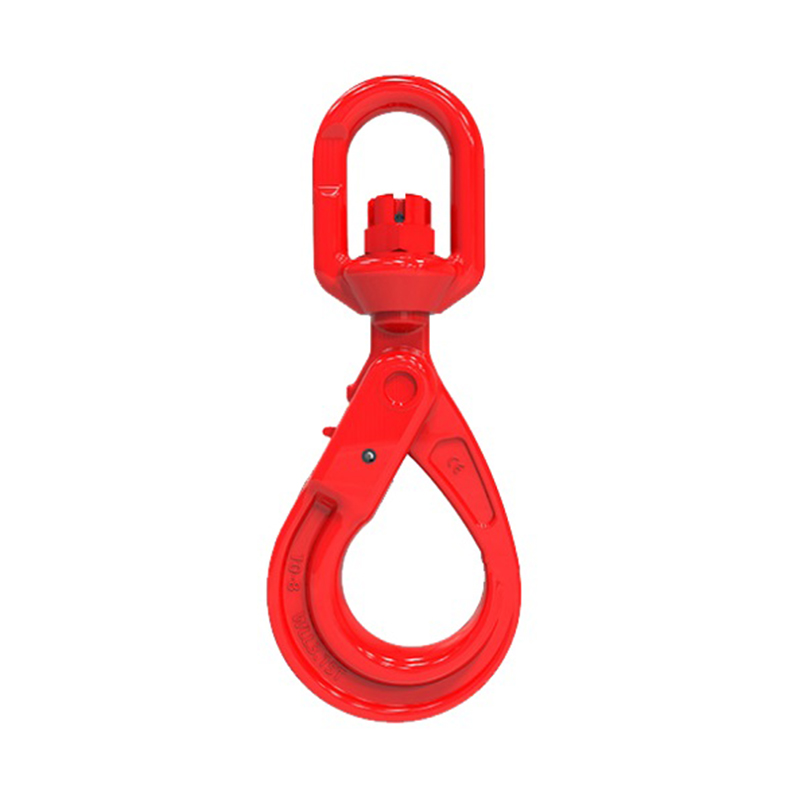

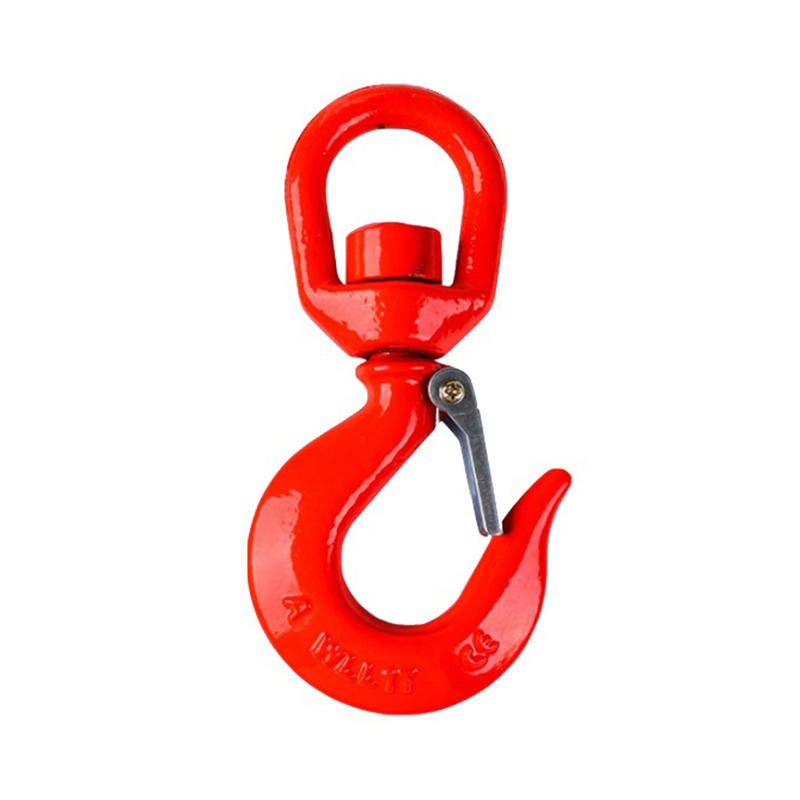

Supports 360° swivel hooks, removable latches ,and embedded sensors(real-time load monitoring).Compatible with chains,wire ropes, and slings.Offers custom solutions(e.g., extended hook tips, explosion-proof models) for nuclear power, mining,and wind energy applications, improving installation efficiency by 50%.

Keywords: Swivel lifting hook,modular lifting hook,custom safety hook

• Ergonomic Design & Operational Safety

Hook body features rounded edges (R≥10mm)to prevent sling damage,and self-resetting latches reduce manual intervention. Weighs 20% less than traditional hooks (e.g., 10-ton hook weighs only 8.2kg),minimizing operator fatigue. Includes color-coded load tags(laser-etched WLL) to prevent misuse.

Keywords: Ergonomic lifting hook, lightweight lifting hook, anti-misuse safety hook

◆◆ Technical Parameters

◆◆ Product Uses

1. Port Container Lifting

Swivel safety latch hooks (e.g., SHF series) suit frequent crane operations. 360° bearings prevent wire rope twisting, while auto-resetting latches secure containers during sway. Dacromet coating (1,000-hour salt spray resistance) fights seawater corrosion, supporting 100+ tons per hook, boosting efficiency by 40%.

2. Steel Mill High-Temperature Handling

High-temp hooks (42CrMo material) operate stably in 400°C blast furnace maintenance. Dual locking pins prevent accidental release due to thermal expansion. Wider throat openings fit large ingots (e.g., 5-ton ladles), with hot-dip galvanizing delaying oxidation for 3x longer lifespan.

3. Wind Turbine Tower Installation

Bearing-equipped swivel hooks precisely position 80m towers. Low torque design (≤5N·m) auto-levels towers mid-air. Wind swing-resistant latches work at 15m/s wind speeds, preventing disengagement and ensuring ≤0.5° tilt error.

4. Mining Heavy Equipment Hoisting

Bolt-type safety hooks (IP68-rated) resist mud/clogging in damp mines. G100 chain-compatible mounts handle 50-ton crusher parts. Reinforced tips (20% thicker) endure ore impacts, cutting maintenance by 60%.

5. Shipbuilding & Repair

Submersible hooks (IP68) assist in drydock hull block joining. Salt-proof coatings survive marine environments. Synchronized hydraulic hook groups (4 hooks) balance 200+ ton hull segments within ±2mm precision, avoiding structural stress.

6. Precision Equipment Installation

Non-magnetic micro-load hooks (0.5–5t) handle semiconductor equipment (e.g., lithography machines). 316L stainless steel blocks electromagnetic interference. Laser-aligned lift points limit vibration transfer to ≤0.1%, ensuring micron-level positioning.

◆◆ Product Operate Guide

1. Pre-Use Inspection:

Check for cracks/deformation; ensure latch moves freely.

Verify load ≤ rated capacity (e.g., 10T hook for ≤10T).

Inspect hook-throat wear (<10% thickness loss).

2. Safe Rigging:

Center load in hook throat; avoid side-loading.

Engage safety latch fully before lifting.

Use spreader bars for wide/irregular loads.

3. Lifting & Moving:

Lift smoothly at ≤0.5m/s to prevent swinging.

Never drag hooks on surfaces or overload.

4. Post-Use Care:

Clean debris; lubricate pivot points quarterly.

Store in dry area away from chemicals.

◆◆ Product Video

◆◆ FAQ

Q1: Is the safety latch mandatory? How to prevent accidental release?

Answer: The safety latch is essential for preventing disengagement and must always be engaged! Spring-loaded latches auto-lock under load (requiring ≥10% of load force to open), while bolt-type latches require manual locking. Regularly check spring tension and pin wear to avoid failure in high-vibration environments.

Q2: Will hooks fail in high-temperature environments (e.g., steel mills)?

Answer: Use 42CrMo high-temperature hooks (≤400°C operating temperature), retaining ≥90% tensile strength at high heat. Avoid thermal shock; standard alloy steel hooks require 20% derating above 200°C to prevent brittleness.

Q3: How to determine if a hook needs replacement?

Answer: Retire immediately if: Cracks(detected via magnetic particle inspection)

Throat wear ≥10% of original thickness (e.g., ≤45mm for a 50mm neck) Twist deformation >10° Latch jamming/failure to reset

Q4: Can hooks be mixed with chains of different grades (e.g., G80/G100)?

Answer: Strictly prohibited! Hooks must match chain safety grades (e.g., G100 chain requires 5:1 safety hook). Mixing risks chain breakage without hook failure, causing imbalance. Hooks must be stamped with compatible chain grades (e.g., "G100").

Q5: How to prevent rust in marine environments? Is standard galvanizing sufficient?

Answer: Hot-dip galvanizing (80μm) suits mild corrosion only; marine environments require Dacromet coating (1000-hour salt spray resistance). Rinse salt monthly with freshwater; inspect coating every 6 months (recoat if >5% peeling).
