◆◆ Product Advantage
Our webbing slings are crafted from premium polyester or nylon fibers, offering a breaking strength of up to 3,000 kgf/cm² (e.g., the 10t model: 10,000kg rated load with a 4:1 safety factor). The flat weaving design distributes stress evenly, reducing localized wear by 40% compared to round slings. With low elongation (≤3% under full load), they ensure stable lifting, making them ideal for precision machinery or fragile cargo.
Keywords: Webbing slings, high-strength webbing slings, synthetic fiber webbing slings

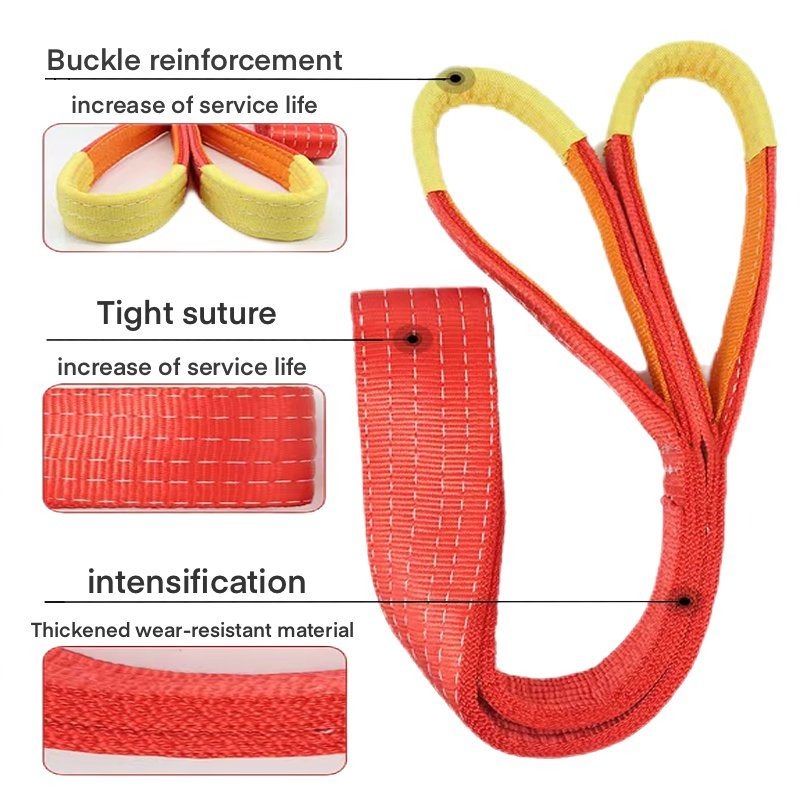

Certified to EN 1492-1 (EU) and ASME B30.9 (US), our slings feature a safety margin of 4:1–6:1 (e.g., a 10t sling withstands 40t static load). Reinforced end fittings (alloy steel rings/hooks) resist tearing, while UV-resistant coating prevents degradation in sunlight. Third-party tested for over 10,000 load cycles, they ensure zero slippage in critical lifts (e.g., steel coils, heavy equipment).
Keywords: Safety webbing slings, high-safety-factor webbing slings, webbing sling certifications
Available in lengths from 1m to 10m (customizable up to 20m), our slings support vertical, horizontal, or inclined lifting. The writable load tag (clearly marked with WLL, length, and material) enables quick identification. For irregular loads (e.g., machinery frames, pipes), the flexible webbing conforms to contours without damaging surfaces—unlike rigid chains.
Long-tail Keywords: Multi-length optional webbing slings, flexible webbing slings, irregular load webbing slings
Polyester slings resist oils, chemicals (acids/alkalis up to pH 12), and rot, while nylon variants withstand temperatures from -40℃ to +100℃. The tightly woven surface (≥1000D density) minimizes abrasion from sharp edges, extending service life to 5+ years (vs. 2 years for standard steel chains). Easy to clean with mild soap—no special storage required.
Keywords: Corrosion-resistant webbing slings, high-temperature-resistant webbing slings, long-life webbing slings
Weighing just 1.2kg/m (vs. 5kg/m for steel chains), our slings lower back strain during manual handling. The soft webbing material eliminates noise (≤45dB) and sparking risks (non-conductive), making them safe for use near electrical equipment or in quiet warehouses. Quick-release buckles enable one-hand adjustment, boosting loading/unloading efficiency by 30%.
Long-tail Keywords: Lightweight webbing slings, low-noise webbing slings, ergonomic webbing slings
◆◆ Technical Parameters
| Ated Load Capacity |
1t ~ 100t (Common: 1t, 2t, 5t, 10t, 20t, 32t, 50t) |
| Safety Factor |
4:1 ~ 6:1 (Compliant with EN 1492-1) |
| Material Type |
Polyester (Polyester), Nylon (Nylon), Aramid (Kevlar®-type) |
| Breaking Strength |
- Polyester: 2500 ~ 3500 kgf/cm²
- Nylon: 2000 ~ 3000 kgf/cm²
(Calculated as Rated Load × Safety Factor) |
| Elongation |
≤3% (Polyester) / ≤5% (Nylon) under static load |
| Certifications |
EN 1492-1 (EU), ASME B30.9 (USA), GB/T 10454 (China), ISO 4878 (International) |
| Operating Temperature Range |
- Polyester: -40℃ ~ +100℃
- Nylon: -50℃ ~ +120℃
- Aramid: -50℃ ~ +250℃ |
| Length Range |
Standard: 1m ~ 10m
Custom: 1m ~ 20m (to match crane hook spacing) |
| Abrasion Resistance |
≥10,000 cycles (Passes wire brush friction test with ≤10% thickness loss) |
| Surface Treatment |
- Polyester: UV-resistant coating (anti-UV)
- Nylon: Epoxy spray coating (chemical-resistant)
- Aramid: Rubberized treatment (waterproof) |
| End Fittings Specifications |
- Alloy steel rings (capacity ≥1.5× rated load)
- Chrome-plated hooks (corrosion-resistant)
- Quick-release buckles (single-hand operation) |
| Load Tag |
Clearly marked with WLL (Working Load Limit), length, material, and certification number (e.g., EN 1492-1) |
◆◆ Product Uses
1. Heavy Component Handling in Manufacturing
In machinery processing plants or automobile manufacturing workshops, webbing slings are used to lift and transport heavy metal components (1t–20t) such as engine blocks and machine tool beds. Their flexible design conforms to irregular surfaces, preventing scratches on workpiece coatings caused by traditional hooks. With low elongation (≤3%), they ensure precise positioning, reducing assembly errors and improving production line efficiency.
2. Warehouse Logistics: Stacking & Sorting
In warehouses, webbing slings facilitate stacking and sorting of steel coils, plates, or palletized goods via cranes. They enable quick vertical lifting and horizontal movement to designated storage locations. Their lightweight design (1.2kg/m) reduces manual handling strain, while clearly marked WLL (Working Load Limit) tags prevent overloading. Daily throughput increases by 30% compared to traditional chain slings.
3. Steel Structure Lifting in Construction Projects
For hoisting H-beams, I-beams, and other structural steel sections at construction sites, webbing slings support multi-story floor transfers with customizable lengths (1m–20m, tailored to tower crane specifications). Their flexible material conforms to steel component edges, minimizing corner wear. Weather resistance (-40℃ to +100℃) ensures stable operation in rainy or high-temperature conditions, accelerating steel frame assembly progress.
4. Port & Ship Equipment Transportation
At ports and shipyards, webbing slings handle container side panels, ship sections, and other marine components (5t–50t). Their salt spray-resistant coatings (UV/epoxy) withstand humid, corrosive environments, while high tensile strength (≥3000kgf/cm²) ensures safe lifting of large items. The flexible design adapts to curved ship hulls, avoiding deformation risks caused by rigid slings.
5. Automotive Assembly Line Automation
In automobile assembly lines, webbing slings assist robotic arms in picking up precision components (1t–5t) such as engines and transmissions. Their low noise (≤45dB) and non-conductive properties avoid interfering with electronic systems. Quick-release buckles enable one-handed adjustment, reducing line stoppage time and increasing assembly cycle time to 90 seconds per unit.
6. Special Lifting in Chemical & Food Industries
In chemical plants, webbing slings with acid/alkali resistance (pH 1–14) handle reactors and storage tanks. In food factories, food-grade coated slings (FDA-compliant) lift packaged steel materials without metal contamination. Their smooth, burr-free surfaces prevent material residue, meeting strict hygiene requirements.
◆◆ Product Operate Guide
Webbing Sling Operation Guide
1. Before Use: Inspect for wear, cuts, or UV damage; check WLL tag (ensure load ≤ rated capacity). Fasten end fittings securely to crane hooks.
2. During Lifting: Keep sling vertical, avoid sharp edges (use protectors if needed). Lift slowly to confirm stability—never jerk or tilt.
3. After Use: Clean with mild soap, dry thoroughly; store away from heat/chemicals. Retire if frayed or stretched >5%.
4. Pro Tip: Match sling length to lift height—too long may cause sway; too short risks edge stress.
◆◆ Product Video
◆◆ FAQ
Q1: Can webbing slings suddenly break during lifting?
Our slings have a safety factor of 4:1–6:1 (e.g., 10t sling withstands 40t static load) and undergo third-party testing for 10,000+ cycles. They rarely break if used within rated capacity; avoid overloading or sharp edges.
Q2: How to maintain webbing slings for longevity?
Wipe with mild soap monthly, dry thoroughly, and store away from heat/chemicals. Inspect for fraying or UV damage before use—replace if stretched >5% or cut.
Q3: Are they suitable for wet/hot environments?
Polyester resists oils/chemicals; nylon works at -40℃~+100℃; aramid handles up to 250℃. All models have UV coatings for sun exposure—ideal for ports, foundries, or outdoor use.
Q4: How long do they typically last?
With proper care, 5+ years (vs. 2 years for steel chains). Harsh environments (e.g., steel mills) may reduce to 3 years; regular inspections extend service life.
Q5: Do they meet international safety standards?
Yes—certified to EN 1492-1 (EU), ASME B30.9 (US), and GB/T 10454 (China). Compliance ensures safety for global projects.
