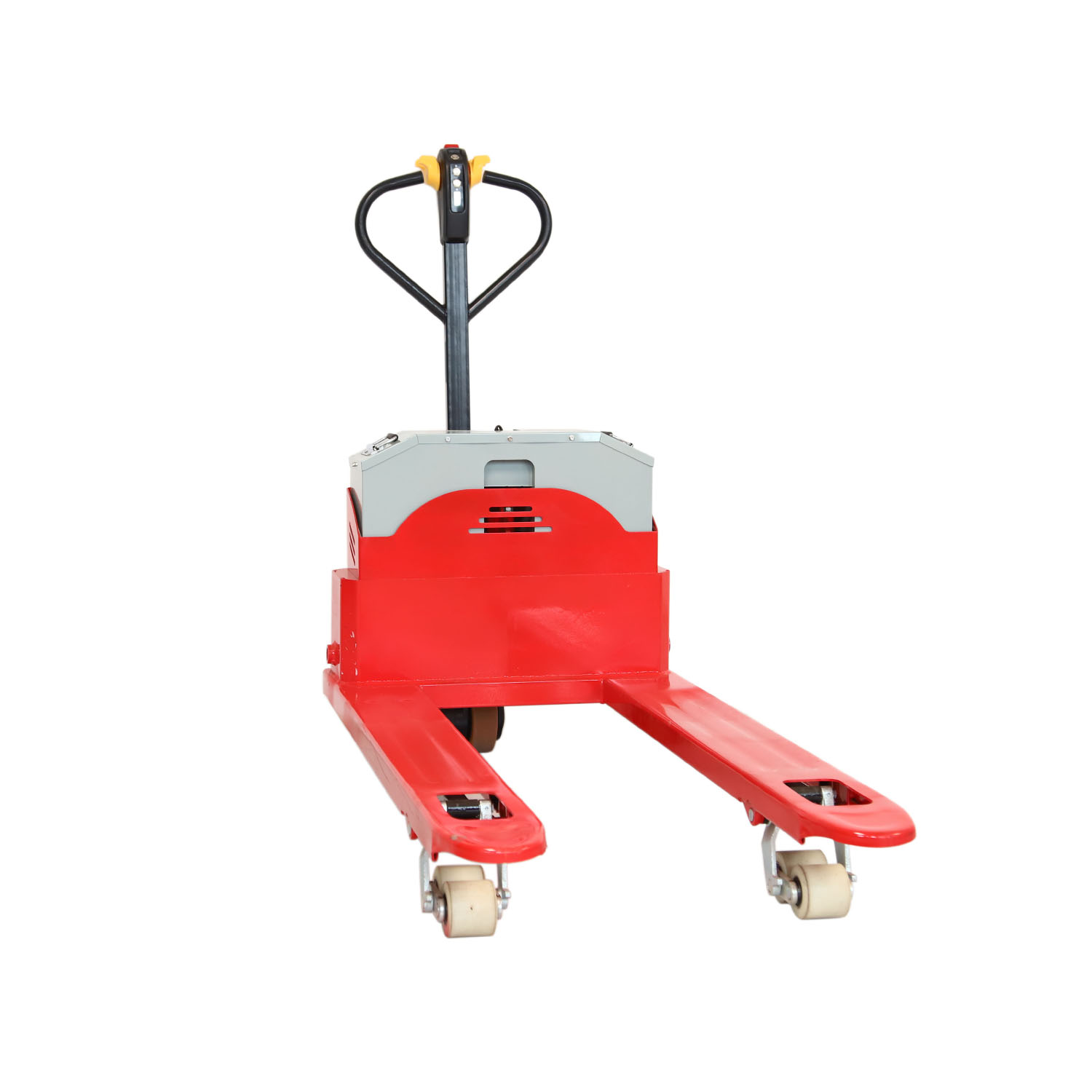

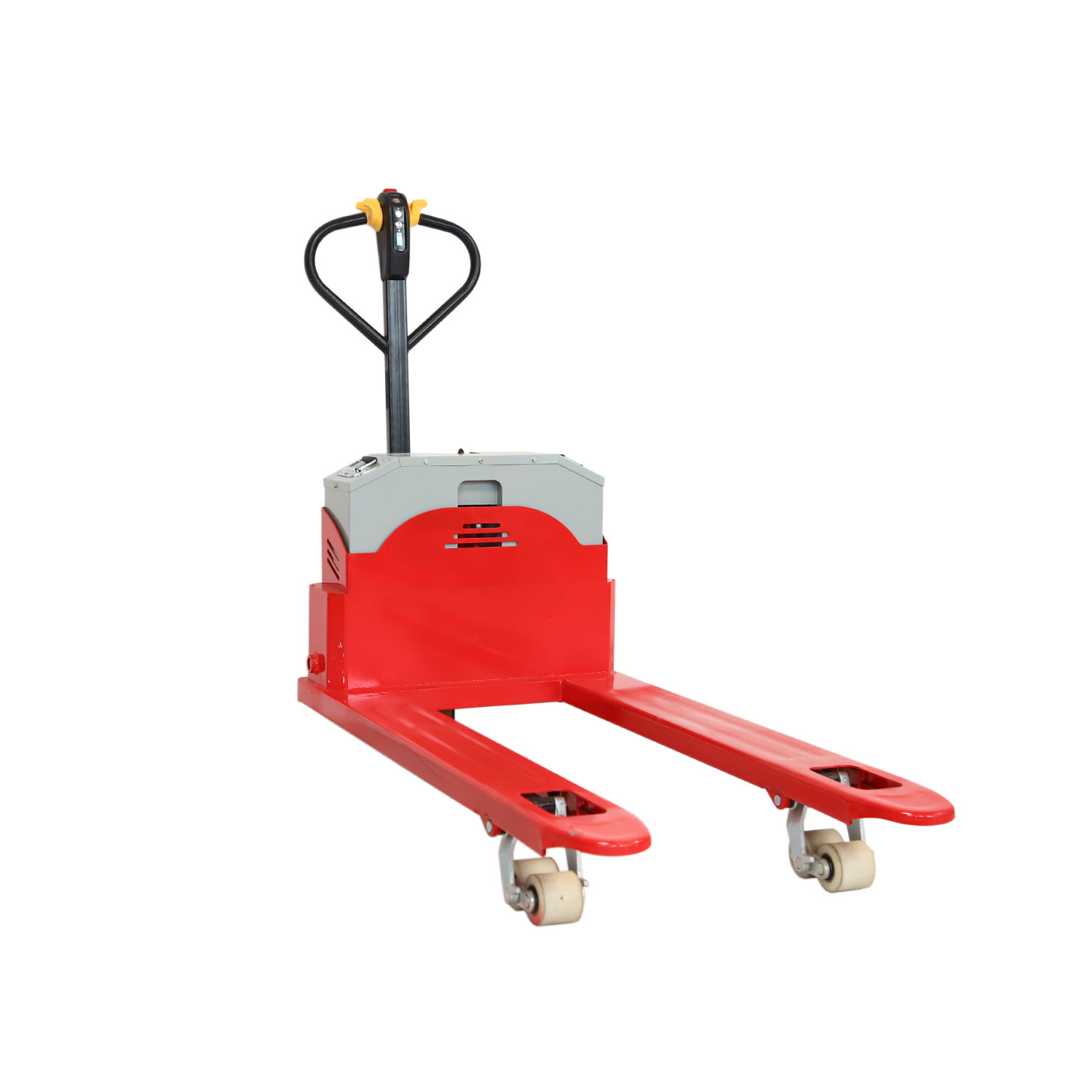

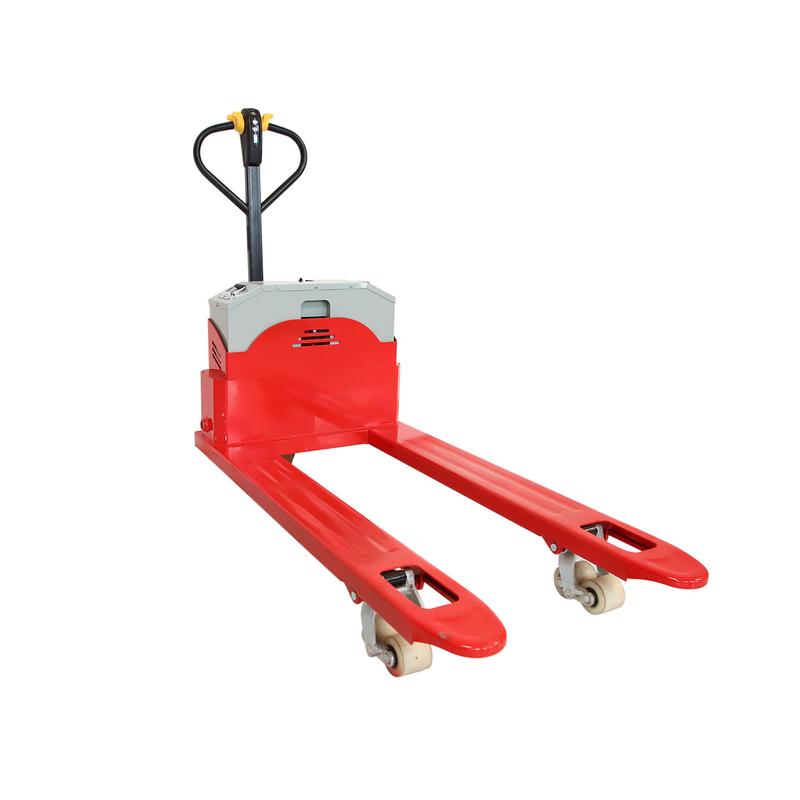

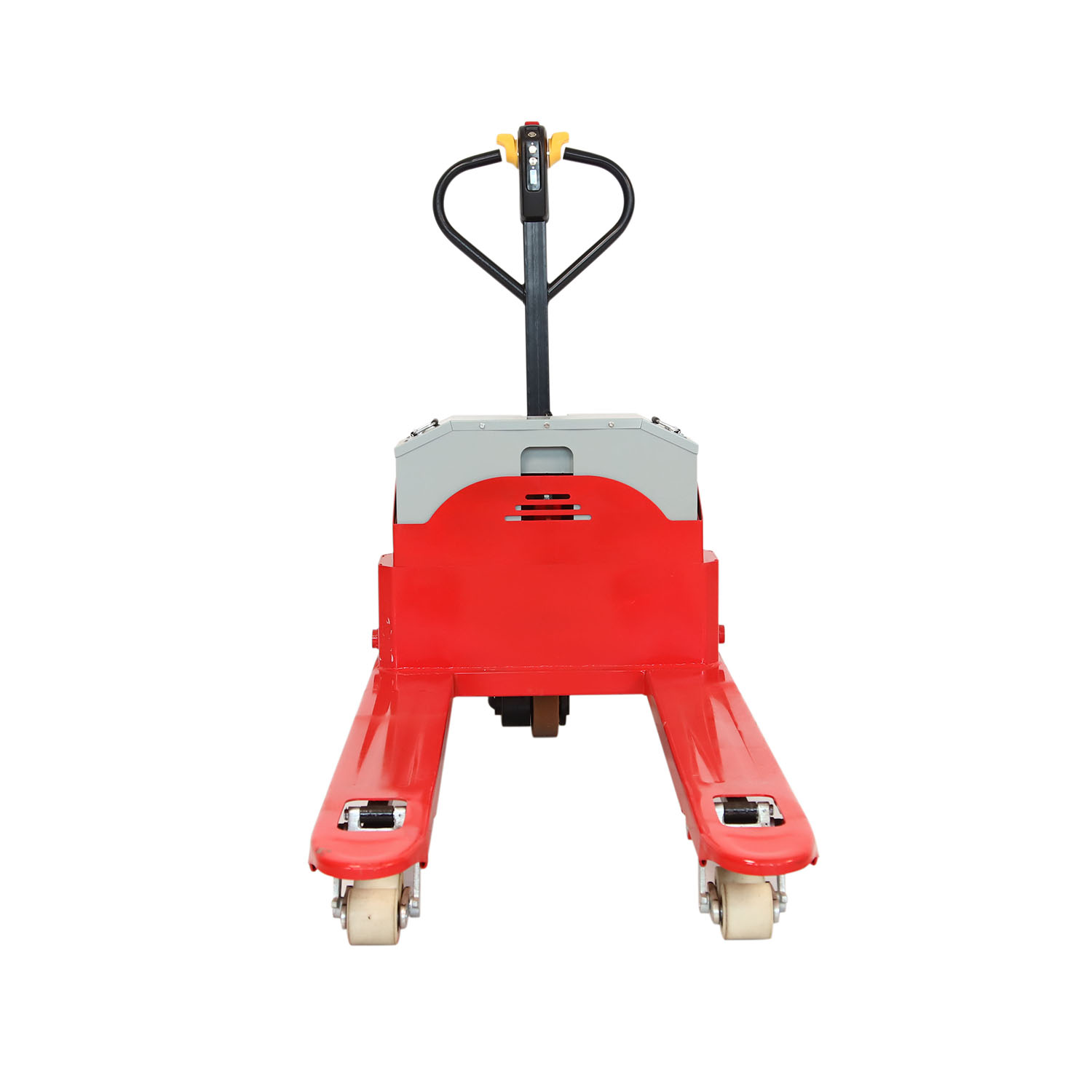

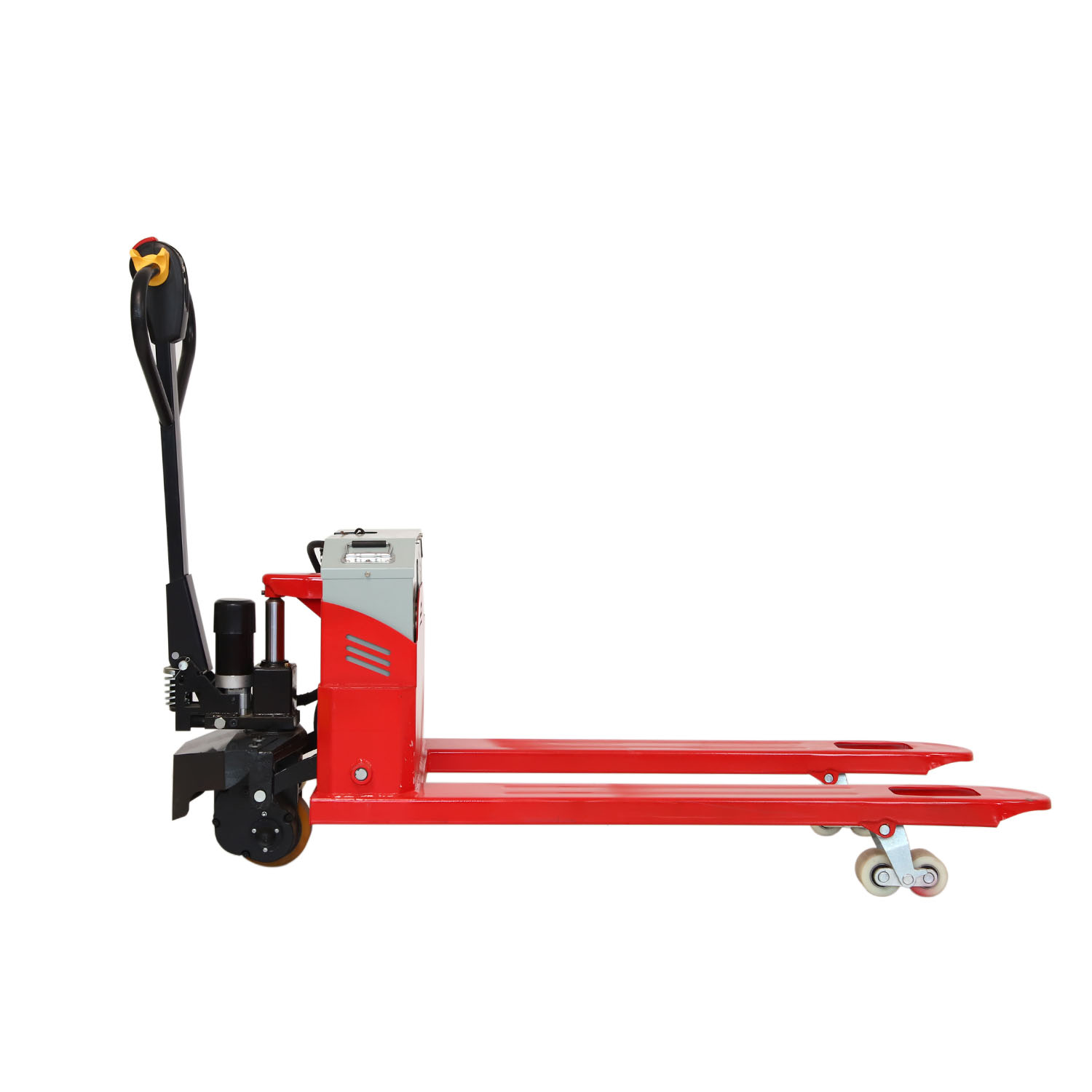

1500kg CE-Certified Semi-Electric Pallet Truck​

◆◆ Product Advantage

• Efficient and Labor-Saving with Cost Balance, Outstanding Cost-Effectiveness

The semi-electric pallet truck uses a 1.2kW motor only for lifting, saving 70% of lifting force compared to manual pallet trucks. A single lifting/lowering cycle takes just 5 seconds (manual ones take 15-20 seconds). It retains manual pushing for movement, reducing costs by 40% compared to fully electric models, with annual maintenance costs of only 300 yuan. Ideal for small and medium-sized scenarios with 50-150 daily transfers.

Keywords: cost balance, efficient and labor-saving, suitable for small and medium-scale use

• Flexible Endurance Design, Adaptable to Intermittent Operations

Equipped with a 12V/60Ah lead-acid battery, it can complete 300 lifting cycles on a full charge, covering an 8-hour shift. Charging takes only 4 hours (30% shorter than fully electric fast charging). Without complex drive systems, its battery capacity is 60% smaller than fully electric models, reducing weight by 25kg for easier steering in narrow spaces.

Keywords: flexible endurance, adaptable to intermittent operations, lightweight design

• Simple Operation and Easy to Learn, Low Maintenance Threshold

Integrated with lifting buttons and an emergency stop switch, its operation logic is 50% simpler than fully electric models, allowing new employees to master it in 10 minutes. Core components only include the lifting motor and battery, with 60% fewer electronic parts than fully electric models, reducing failure points by 70%. Ordinary staff can replace consumables like fuses and batteries independently.

Keywords: simple operation, low maintenance threshold, replacement of consumables

• Streamlined and Durable Structure, Strong Scene Adaptability

The load-bearing frame is made of Q235 steel (20% stronger than manual pallet trucks), with an overall weight of 120kg (fully electric models are about 200kg), enabling passage through elevators and narrow doors. The combination of polyurethane directional wheels and universal wheels reduces pushing resistance by 40% compared to manual pallet trucks, suitable for cement and tile floors.

Keywords: streamlined structure, strong scene adaptability, low pushing resistance

• Compliant Safety Design, Ensuring Operational Standards

Certified by ISO12100 mechanical safety standards, it is equipped with overload protection (automatic power-off when exceeding 120% of rated load) and a lowering speed limit valve (speed ≤0.15m/s). The handle is fitted with anti-slip rubber sleeves, improving grip comfort by 50% compared to manual pallet trucks and significantly reducing hand fatigue after 2 hours of continuous operation.

Keywords: compliant safety, overload protection, operational comfort

• Reliable Market Verification, Excellent Customer Feedback

With over 12,000 units sold, it has served more than 800 customers including chain supermarkets and small factories, with a repurchase rate of 65%. Third-party testing shows its mean time between failures (MTBF) reaches 1500 hours, 3 times higher than peer manual pallet trucks, with a user satisfaction rate of 92%.

Keywords: market verification, high repurchase rate, user satisfaction

◆◆ Technical Parameters

◆◆ Product Uses

1. Order Picking & Replenishment in Mid-Sized Warehouses

In 3,000-5,000㎡ warehouses, operators use electric travel to reach picking locations (70% labor reduction vs manual) with manual lifting for precise positioning. At ≤150 pallets/day, costs are 40% lower than full-electric models while doubling manual efficiency.

2. Dock-to-Buffer Zone Short-Distance Transfer

For 50-150m transfers between loading docks and warehouse staging areas, semi-electric trucks move steadily at 3-4 km/h, eliminating long-distance manual pushing fatigue. One charge supports 4 hours of continuous operation, increasing transfer efficiency by 50%.

3. Line-Side Logistics in Light Manufacturing

In electronics/apparel workshops, semi-electric trucks operate quietly (<65dB) between production lines using electric propulsion, while manual height adjustment aligns with workstations. At 80-120 pallets/day, equipment costs are just 60% of full-electric models.

4. Cost-Effective Cold Chain Solution

In -25℃ freezers, frost-proof batteries enable electric travel (hydraulics use cold-resistant oil). These units are 40% faster than manual jacks and avoid full-electric’s expensive heated grips, reducing maintenance costs by 35%.

5. Flexible Operation in Confined Spaces

For aisles <1.8m or container interiors, semi-electric models are more compact than full-electric (no platform). Operators can walk behind for manual pushing with electric start assist, supporting seamless manual/electric hybrid mode switching.

◆◆ Product Operate Guide

1. Prepare

Insert forks fully into pallet. Center load ≤ rated capacity.

Power ON → Disengage brake.

2. Travel

Electric Drive: Press & hold thumb lever on handle:

Forward: Push lever forward

Reverse: Pull lever backward

Steer: Tilt handle left/right while moving.

3. Lift/Lower

↑ Lift: Pump handle manually (like manual pallet jack)

↓ Lower: Rotate hydraulic release knob slowly.

4. Stop & Park

Release thumb lever → Auto brakes engage.

Lower forks fully → Power OFF

Charge after use (Avoid full discharge).

5. Critical Notes:

Always walk behind truck – NEVER ride

Keep load visible; release lever to emergency stop

Manual lifting requires even force – avoid jerking!

Training certification mandatory

*Battery Care: Recharge at 20% | Store at 15°-25°C*

◆◆ Product Video

◆◆ FAQ

Q: Why does the truck stop moving when pumping the lift handle?

A: Safety interlock feature: Travel motor automatically cuts off during manual lifting to prevent accidental movement. Repress thumb lever to restart after lifting. Never bypass this function!

Q: How far can it travel on one battery charge?

A: Typically 8-12 km per charge (varies by load). Lithium batteries extend range by 30% vs lead-acid. Recharge at 20% battery – deep discharges permanently damage cells.

Q: Can I use it in freezers below -20°C?

A: Partial capability: Electric drive works with frost-proof batteries, but hydraulic lifting requires cold-resistant oil (-30°C spec). Standard hydraulic oil freezes at -10°C – confirm oil type before use.

Q: Why choose semi-electric over full-electric for cost savings?

A: Saves 40% upfront cost and 30% maintenance (no lift motor/electronics). Ideal for sites with ≤150 pallets/day and travel distances <200m where manual lifting is acceptable.

Q: The drive lever feels unresponsive – how to troubleshoot?

A: Check:

Battery voltage (>22V for 24V systems)

Thumb lever microswitch (clean contacts)

Drive wheel obstruction (remove debris)

If persistent, replace control handle assembly.

Q: Critical Reminder？

A: Never modify hydraulic system – manual lifting force must align with OEM design (over-pumping causes seal failure)

Slope limit: 5% max grade even with electric drive – hydraulic lifting destabilizes loads on inclines.

Pro Tip: For cold storage, pre-pump the handle 5x before loading to warm hydraulic oil viscosity.
