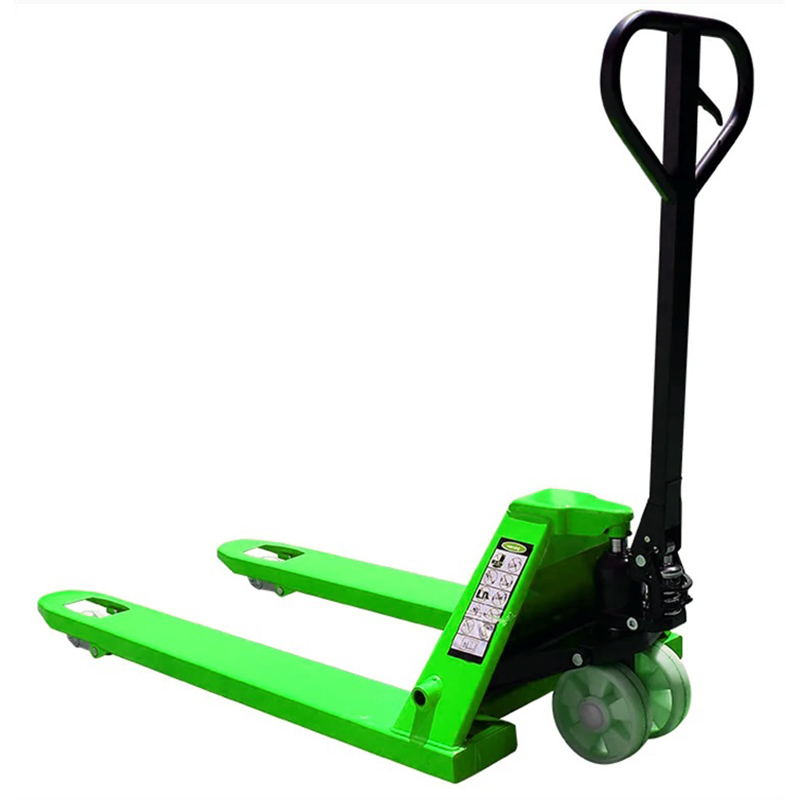

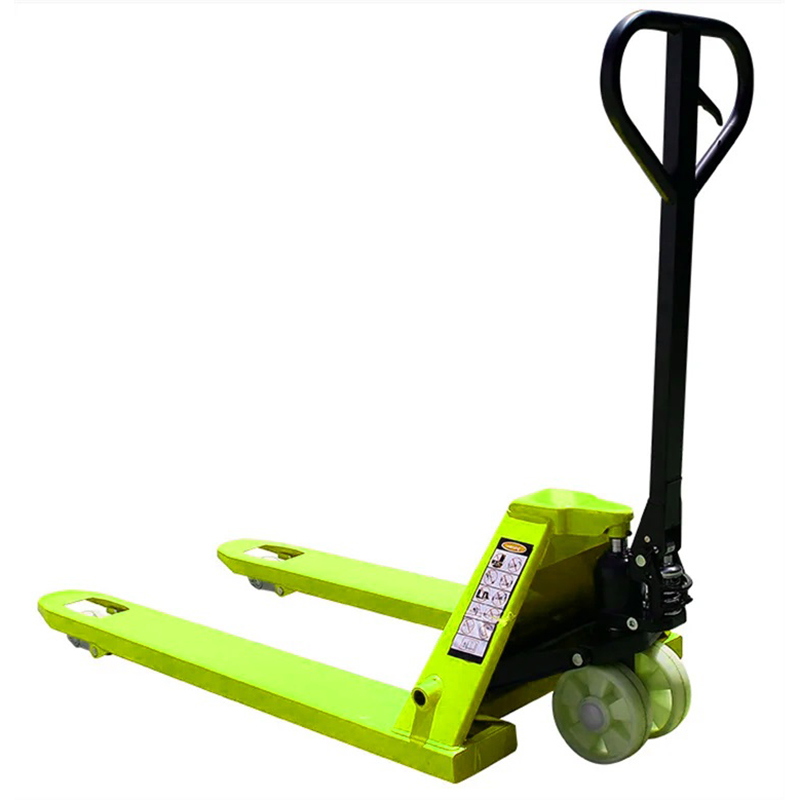

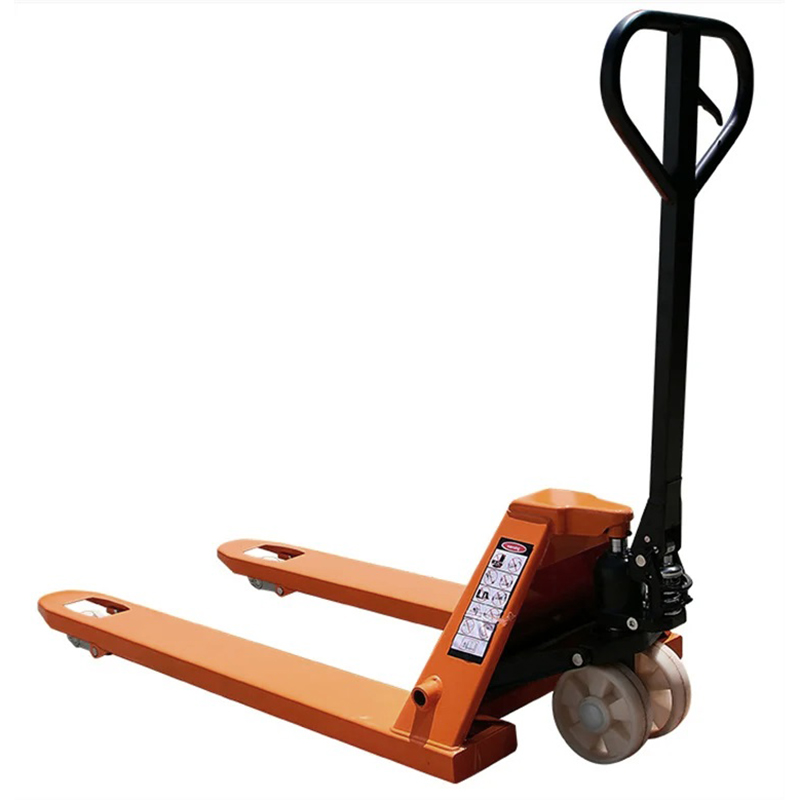

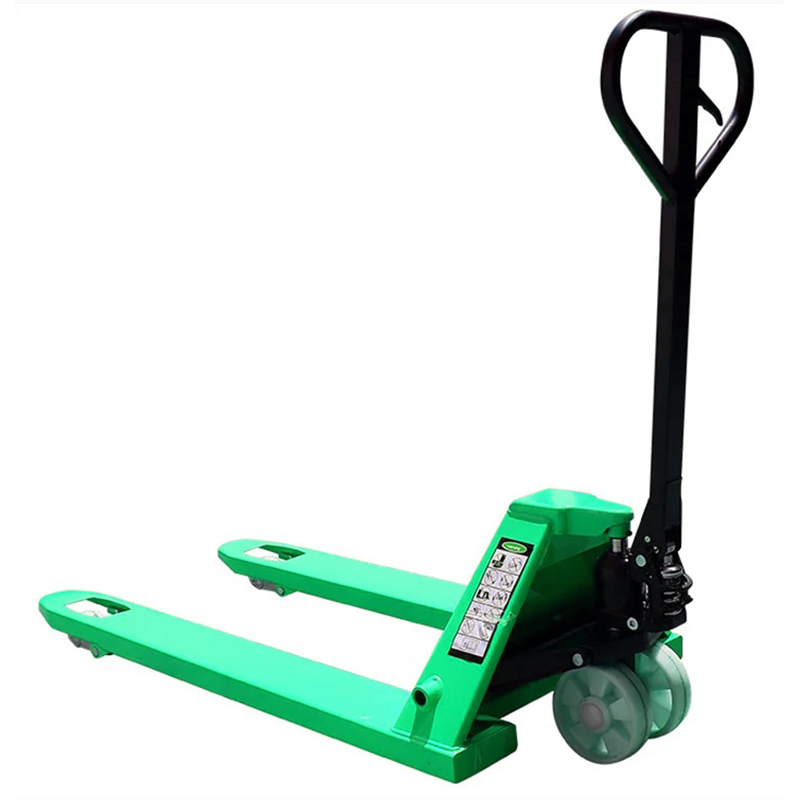

Heavy-Duty Hand Pallet Truck | 2.5 Ton Capacity, Robust Steel Construction for Warehouse & Logistics

◆◆ Product Advantage

1. Robust Hydraulic System & Effortless Operation

The hand pallet truck features an advanced integrated hydraulic pump, achieving a lifting force of 60kN with just 8-10 manual pumps. Its precision-forged steel handle requires only 4 kg of operating force, reducing operator fatigue by 50% compared to conventional models. The ergonomic design ensures smooth pallet entry and exit in tight 1.8m aisles.

2. Ultra-Durable Construction with Verified Longevity

Constructed with 8mm thick reinforced steel forks (1,200 MPa yield strength), it withstands 15,000+ load cycles without deformation. The polyurethane wheels endure 3+ years of daily use—outlasting standard wheels by 2x. Corrosion-resistant coating ensures IP54 protection for damp environments.

3. Advanced Safety & Precision Control

Equipped with a progressive lowering valve for millimeter-precision load positioning (±2mm accuracy). The fail-safe hydraulic system prevents accidental drops, while the reinforced brake mechanism achieves 0.5m stopping distance at full 3-ton capacity.

4. Logistics-Optimized Design & Cost Efficiency

Weighing only 82kg, it enables one-person operation across multi-floor facilities. The 85mm low-profile fork design accommodates 90% of standard pallets. Reduces monthly maintenance costs by 40% via interchangeable modular components.

5. Industry-Specific Certifications & Global Compliance

Certified to ISO9001, ANSI/ITSDF B56.1 standards, with 98% defect-free factory testing. Each unit undergoes 500-cycle endurance validation. Trusted by 3,000+ enterprises including DHL and IKEA supply chains.

◆◆ Technical Parameters

◆◆ Product Uses

1. High-Density Warehouse Order Picking

Ideal for narrow-aisle warehouses, this hand pallet truck maneuvers effortlessly in spaces as tight as 1.8 meters. Its 180-degree rotating handle and low-profile forks (85mm) allow operators to quickly pick orders from high-density storage racks, significantly accelerating the "goods-to-person" process in e-commerce fulfillment centers and improving picking accuracy.

2. Efficient Loading Dock Operations

At busy shipping docks, the hand pallet truck serves as a crucial link for final cargo staging. It swiftly transports loaded pallets from the staging area directly into waiting trucks. Its robust construction handles heavy loads with ease, minimizing truck turnaround time and streamlining the entire loading/unloading process.

3. Flexible Retail Store Logistics

Perfect for stock rotation and shelf replenishment in retail environments like supermarkets. Employees can easily move goods from the backroom to the sales floor without disrupting customers. Its quiet, non-marking wheels protect floors, making it essential for daily in-store logistics.

4. Manufacturing Line Material Feeding

In manufacturing plants, it ensures a continuous flow of raw materials and components to assembly lines. Operators can efficiently transport materials from storage points to workstations, supporting Just-In-Time production and reducing line-side clutter. Its reliable performance prevents production delays.

5. Multi-Floor Facility Cargo Transfer

In multi-level facilities with freight elevators, this truck excels at moving goods between floors. Its compact design allows easy elevator entry/exit, enabling efficient vertical logistics. This eliminates bottlenecks associated with fixed equipment, optimizing space utilization across different levels.

◆◆ Product Operate Guide

Quickly master the hand pallet truck in three steps. First, position the forks fully into the pallet, ensuring the load is centered and does not exceed the rated capacity. To lift, pump the hydraulic lever until the pallet is clear of the ground. To move, simply pull or push the control handle to steer; the wheels allow for smooth movement. To lower the load, slowly turn the release valve on the handle. Always lower the forks completely and engage the brake when parked. For detailed safety protocols, refer to the downloadable PDF manual.

◆◆ FAQ

1.Q: Will occasional overloading damage the equipment?

A: Overloading is strictly prohibited! Even 10% excess can deform hydraulic cylinders or rupture seals. Always stay ≤ rated capacity with a 10% safety margin.

2.Q: Hydraulic system failure in cold environments (cold storage)?

A: Use freezer-spec models (labeled "Freezer") with -30°C hydraulic oil. Standard units freeze below 0°C – forcing operation damages seals.

3.Q: Forks won’t lift or descend slowly after lifting?

A: Troubleshoot:

Check hydraulic oil level (refill to mid-level of sight glass)

Ensure release valve is fully closed (turn clockwise)

Inspect cylinder for leaks (replace seals if leaking)

4.Q: Steering wheels jam when pushing/pulling?

A: Usually debris (plastic/threads) tangled in axles. Clear obstructions immediately. Apply grease monthly. Replace worn wheels with same-spec polyurethane wheels.

5.Q: Key precautions for slope operation?

A:Uphill: Push forward with load on lower side

Downhill: Pull backward while bracing handle against body

Never operate on slopes >3% (≈1.7°)!

6.Q:Preventive Tips?

A:Monthly: Check oil level

Annually: Replace seals

Always store forks fully lowered to prevent hydraulic stress.
