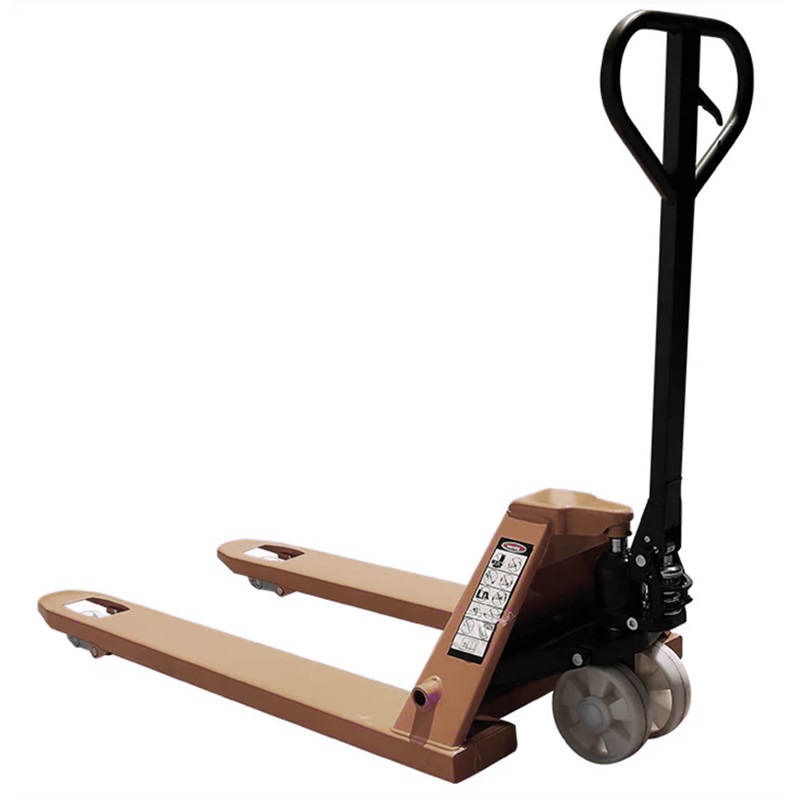

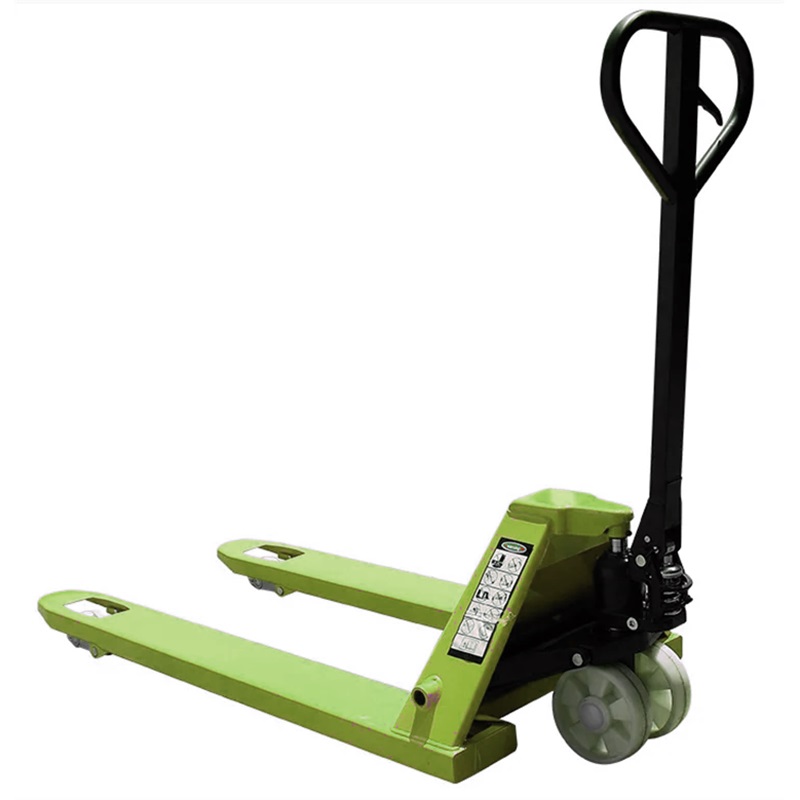

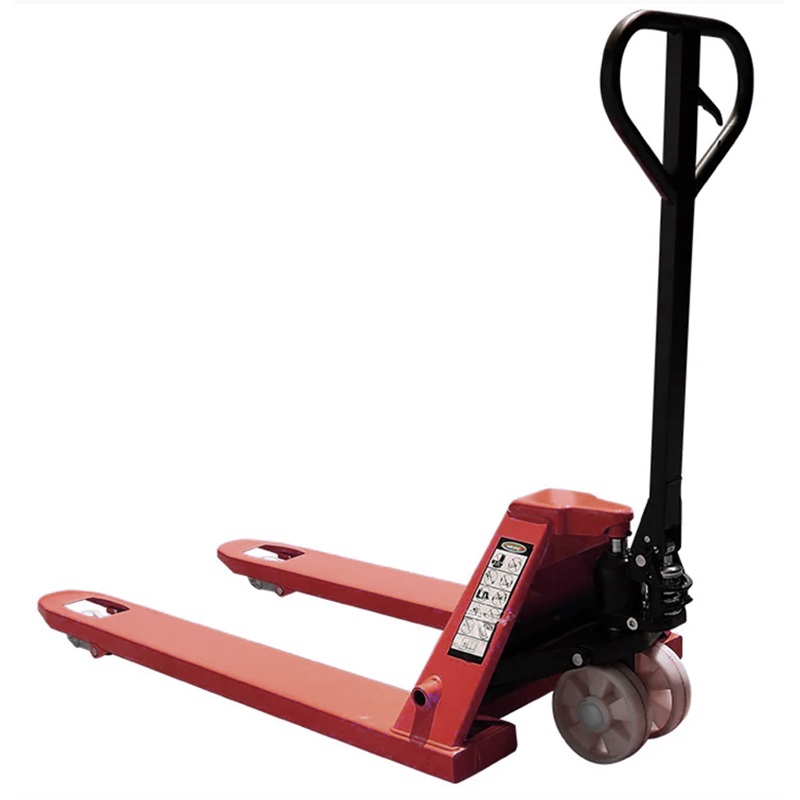

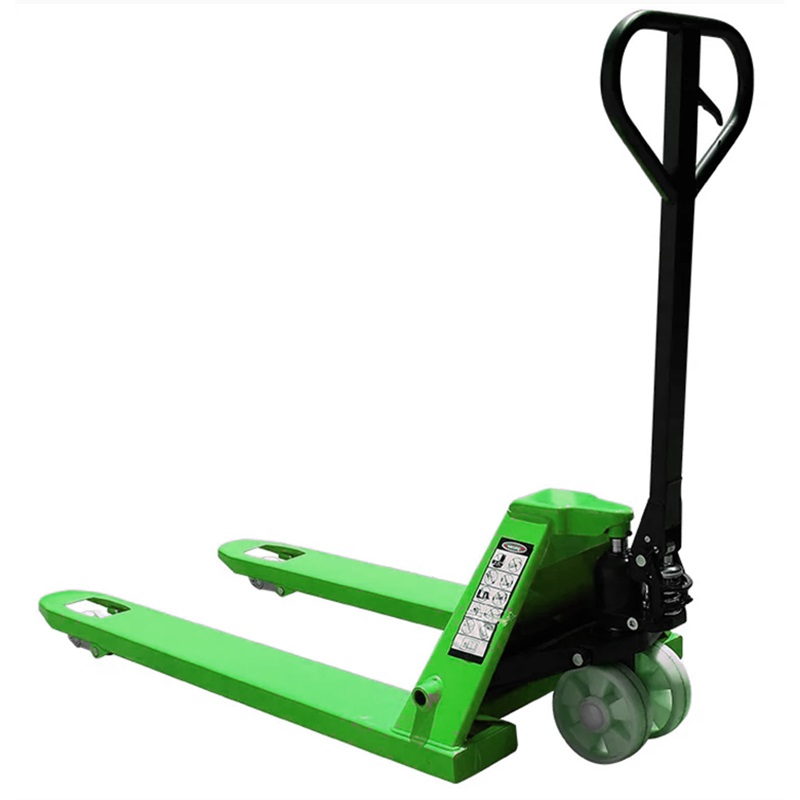

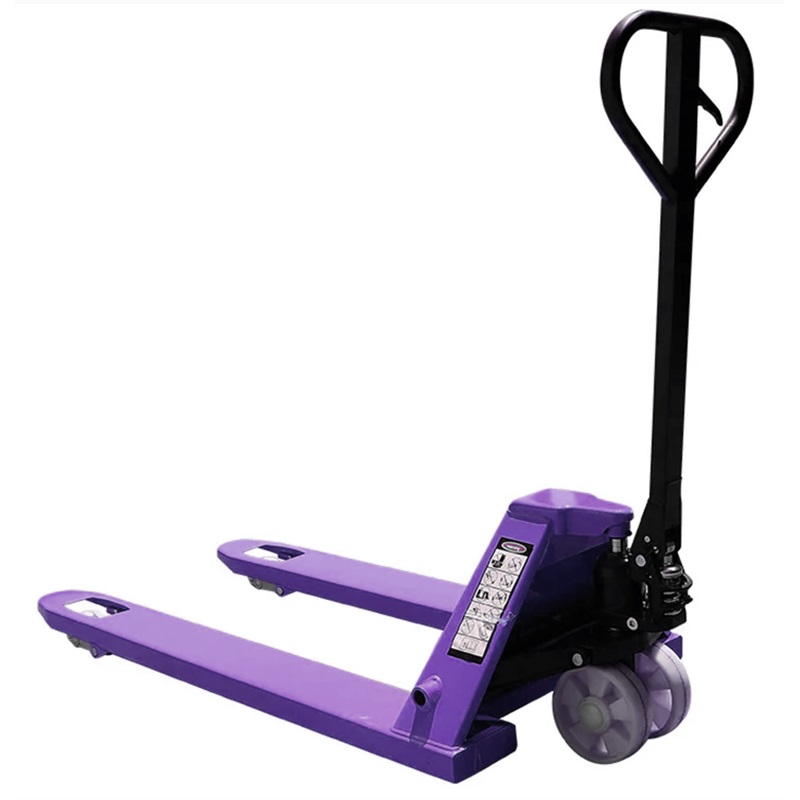

◆◆ Product Advantage
Robust Frame
- Constructed with Q345B alloy steel (30% improved deformation resistance)
- Certified load capacity: **3 tons** (peak 4 tons)
- Built-in overload protection valve
Efficient Operation
- German-sealed hydraulic system (25% faster lifting)
- 30N ergonomic handle (female operators friendly)
- 8–10 seconds per lifting cycle
Multi-Scene Adaptability
- 1.2m minimum turning radius
- Nylon/polyurethane wheels for smooth operation
- Suitable for 1.5m-wide passages
Long-Term Reliability
- 500-hour salt spray resistance
- 15-minute quick maintenance
- Annual cost savings >20% vs competitors
Global Compliance
- ISO9001 & CE certified
- Tested by JD Logistics/Suning Warehousing
- Trusted by 1,500+ enterprises
◆◆ Technical Parameters
| Load Capacity | 1T/1.5T/2T/2.5T/3T/5T/10T |
| Fork Dimensions | 1150×550mm / 1220×685mm |
| Lowered Height | 50–85mm |
| Lift Height | 85–200mm |
| Pump Strokes | 30–40 cycles |
| Net Weight | 65–75kg |
| Wheel Material | Nylon / Polyurethane |
| Pallet Compatibility | Stringer / Block pallets |
◆◆ Product Uses
1. Warehouse Management
- Narrow-aisle pallet handling
- Inventory relocation (replenishment/transfers)
2. Production Logistics
- Just-in-time material delivery to production lines
- Finished goods transfer to staging areas
3. Dock Operations
- Rapid "last-meter" transfer during loading/unloading
- Reduces truck idle time by 40%
4. Special Environments
- Cold storage (-30°C resistant models)
- Dust-proof/anti-static variants for cleanrooms
5. Retail Logistics
- Backroom inventory management
- In-store restocking (ideal for crowded spaces)
◆◆ Product Operate Guide
Watch the Operation Video (Includes Safety Demo)
Key Steps:
1. Align forks with pallet center (insert ≥2/3 depth)
2. Pump handle to lift cargo **15cm** off the ground
3. Use the release valve to lower cargo gently
4. Push/pull with firm grip (avoid slopes >3°)
◆◆ FAQ
Q1: What if I accidentally overload the truck?
A: Overloading risks hydraulic damage. Always stay ≤ rated capacity (10% safety margin recommended).
Q2: How to maintain performance in cold environments?
A: Use -30°C hydraulic oil and lubricants. Schedule monthly checks for optimal operation.
Q3: How to extend the truck’s lifespan?
A: Daily cleaning, quarterly bearing lubrication, and annual seal replacement.
